Hightech
Plugs & Connectors
The extremely durable solution for challenging conditions.
Hightech
Plugs & Connectors
The extremely durable solution for challenging conditions.
The Hightech Plugs & Connectors were specially developed for professional use under extremely harsh conditions. Made from the extremely durable high-performance plastic Elamid, these plug devices withstand the highest mechanical loads, can handle weights of up to one ton, and offer maximum flexibility for various protection requirements.
The Hightech Plug features an IP54 protection rating and is equipped with a dual earthing system, making it universally compatible with both SCHUKO and French/Belgian standards.

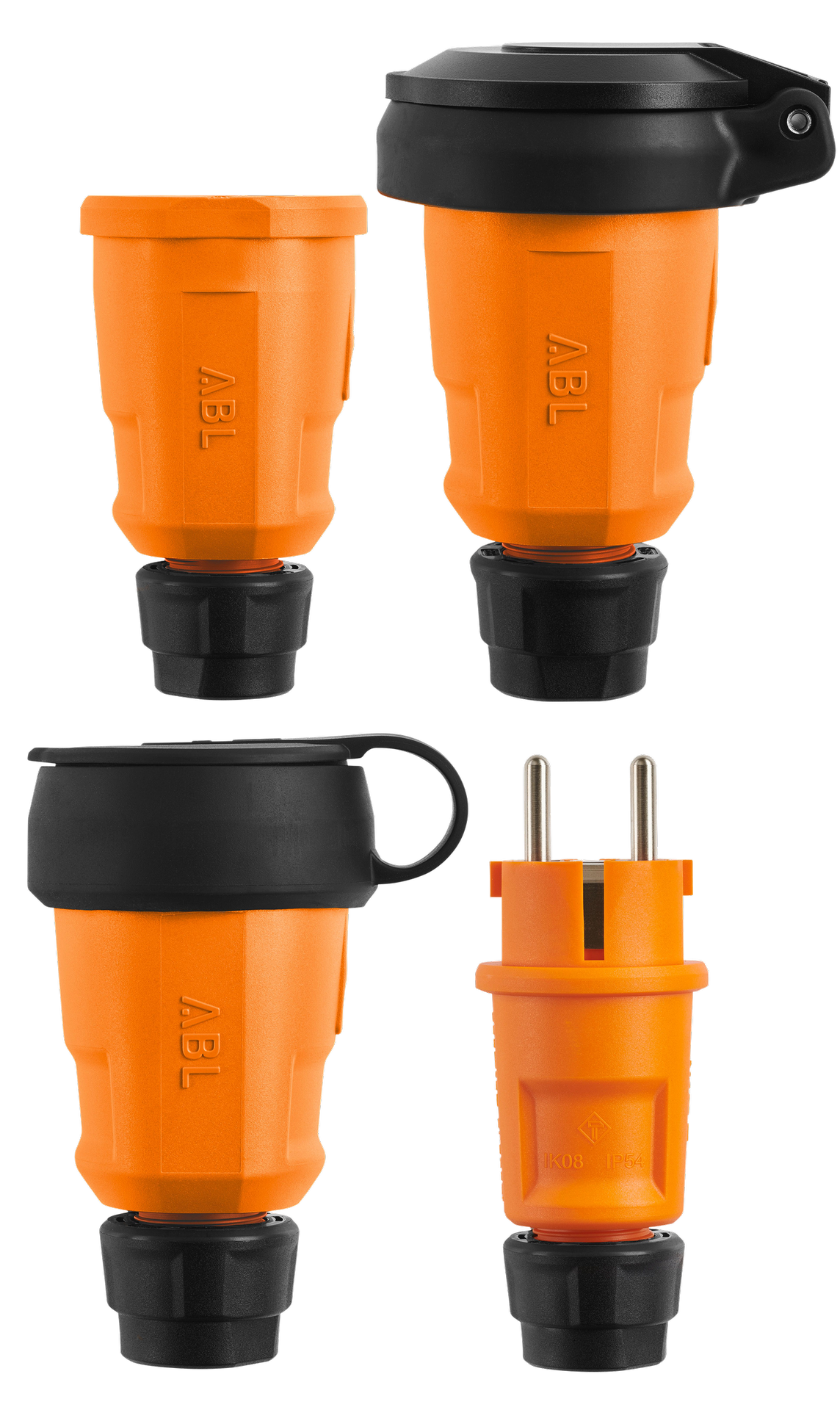

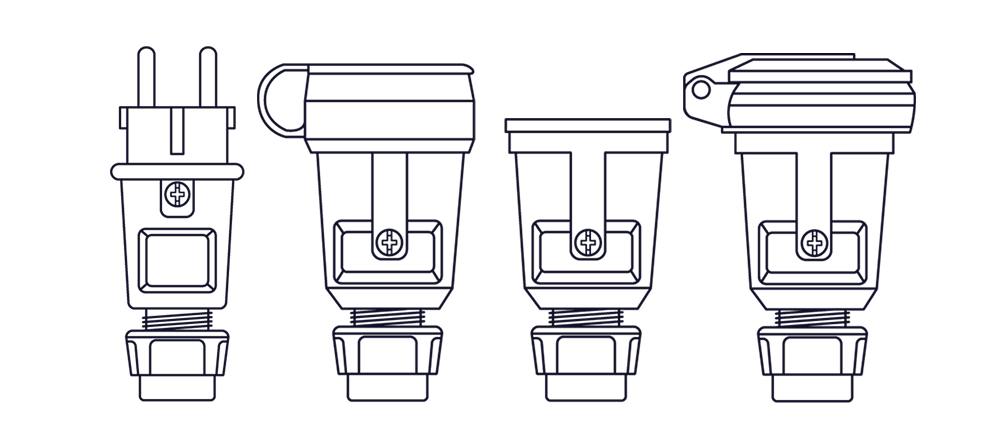

The series is complemented by three different connector variants:
- Variant without collar (IP20)
- Splash-proof variant with collar (IP44)
- Variant with hinged cover (IP54)
All connectors are available as required for the SCHUKO system or the French/Belgian standard, as well as with optional enhanced touch protection.

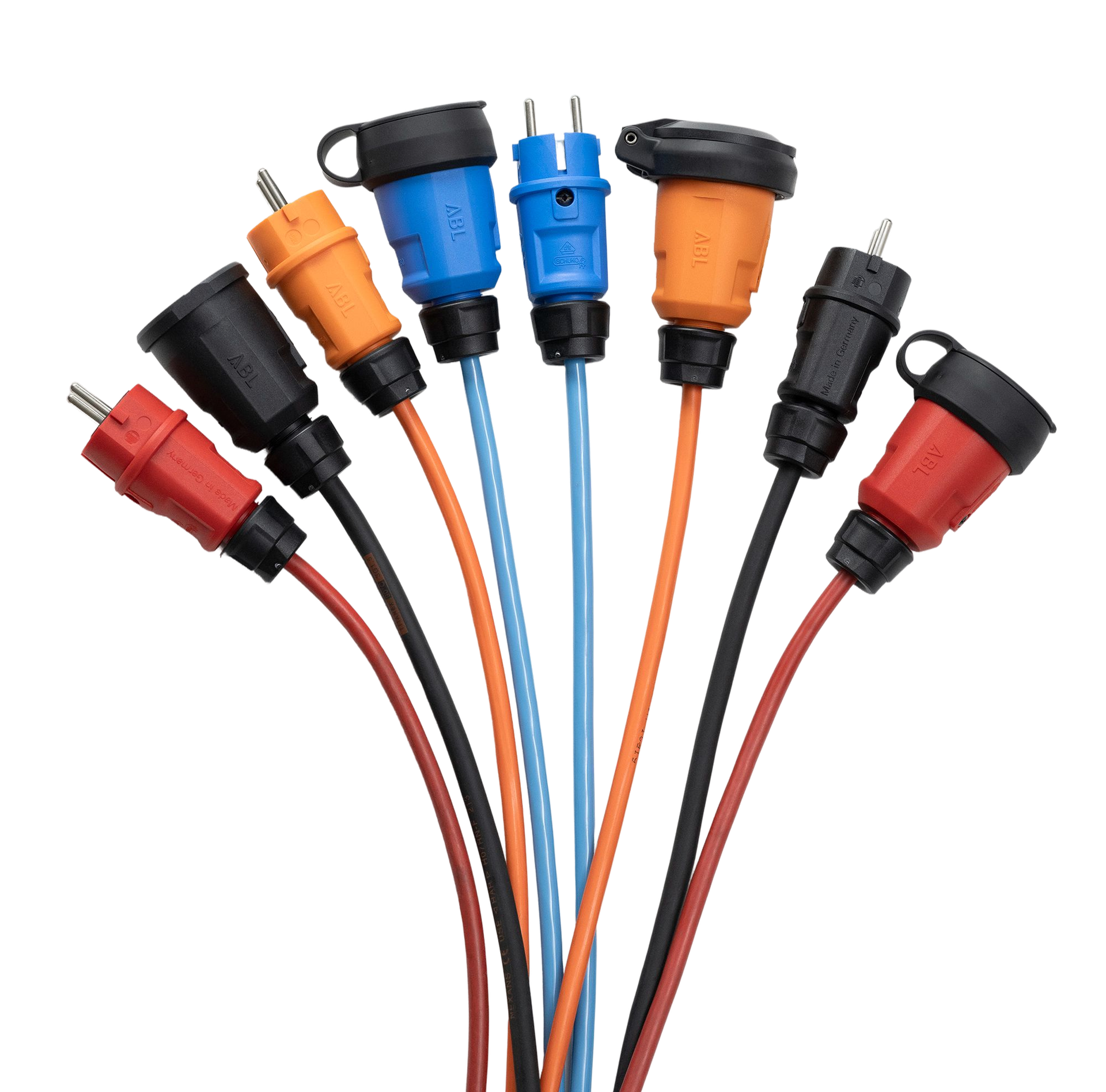

high UV and chemical resistance impact resistance IK08 easy assembly & maximum safety thanks to rating for 16A/250V & connection area up to 2.5 mm²available in 4 color variants (black, red, blue & orange)Quick Facts Hightech Plugs & Connectors
SCHUKO & French-Belgian Standard
Quick-release fastener
UV- and media-resistant
Wiring space
2.5 mm²
3-fold lamellar seal
