Caravaning

Supply systems

Comprehensive product range for campervans and caravans

Caravaning

Supply systems

Comprehensive product range for campervans and caravans

Our Caravaning section offers an innovative and comprehensive range of inlets for all types of RV applications. At 80% market share, ABL leads the recreational vehicle socket inlet segment in Europe.

All ABL recreational vehicle socket inlets stand out by way of their elegant design and their pictograms for the easy differentiation of their respective function. Their choice of magnetic or latched covers makes them especially user-friendly. Covers open to 180 °.

High-quality materials guarantee safety, even with long-term use. All visible parts are made from UV resistant plastic.

Product overview

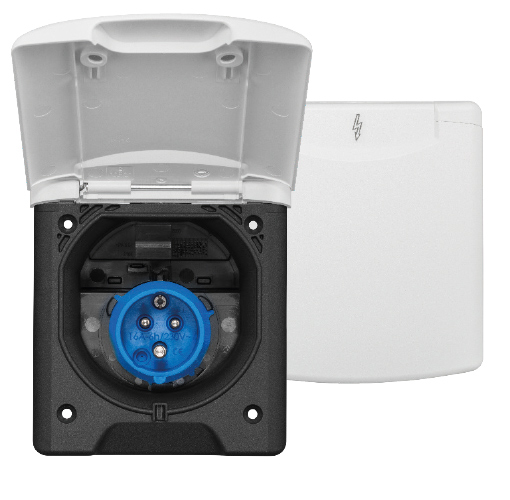

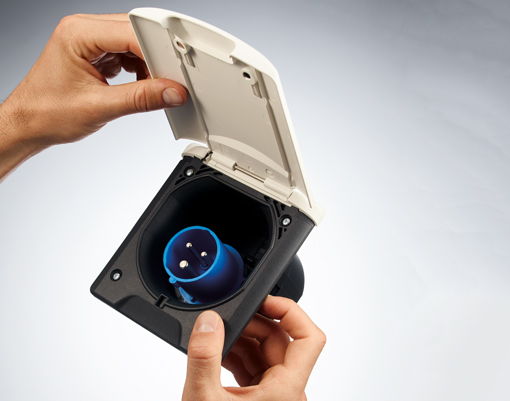

Power inlets

Power inlets enable a power supply to the campervan or caravan, and are therefore part of an RV's basic equipment.

SAFETY
High, 850° C fire protection class, self-extinguishing plastic.

USER-FRIENDLINESS
CEE connector with self-opening safety latch.

LARGE WIRING SPACE
for a comfortable and quick wiring up process.

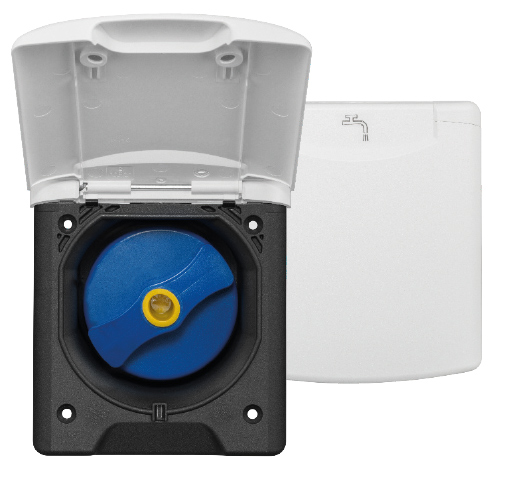

Water filler neck

The RV's water tank can be filled comfortably via the water filler neck.

HIGH-QUALITY MATERIALS
Licensed according to KTW and W270.

SUITABLE FOR HSC AND ZADI LOCKS

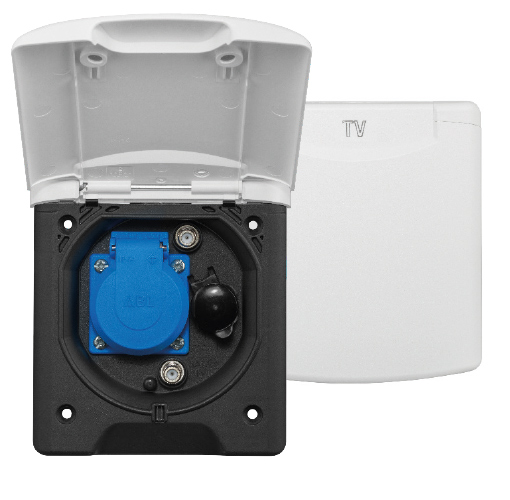

Multi-purpose sockets

Multi-purpose sockets cover a multitude of application scenarios and allow for connecting a range of devices. For example, a TV can be connected in the annex of a campervan.

SEVERAL STANDARDS AVAILABLE
SCHUKO, French/Belgian, British Standard, USB etc.

VARIOUS APPLICATIONS
Equipped with 12 V DC socket outlet and two SAT sockets.

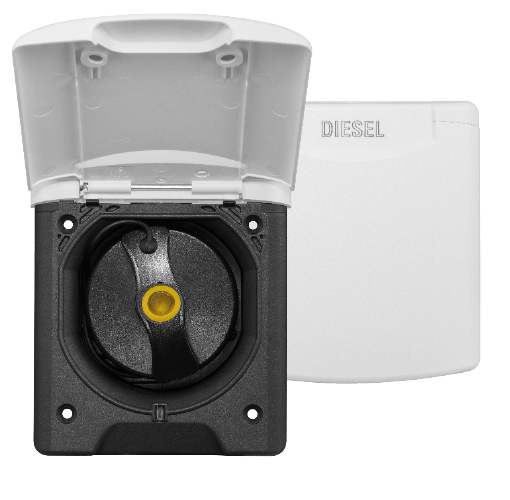

Diesel filler neck

Filler neck for comfortable Diesel refuelling of e.g. campervans.

SUITABLE FOR HSC AND ZADI LOCKS

USER-FRIENDLINESS
Strap to secure tank lid.

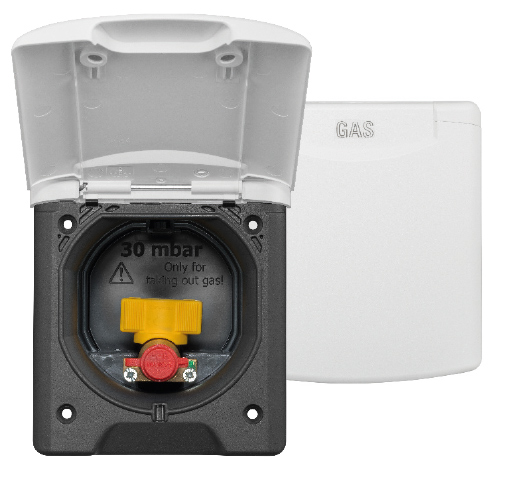

Exterior gas socket outlet

Exterior gas socket outlet for secure connection of e.g. gas barbecues or cookers.

SECURE GAS STOPCOCK HOLDER

EASY TO OPERATE GAS STOPCOCK

SAFETY VALVE

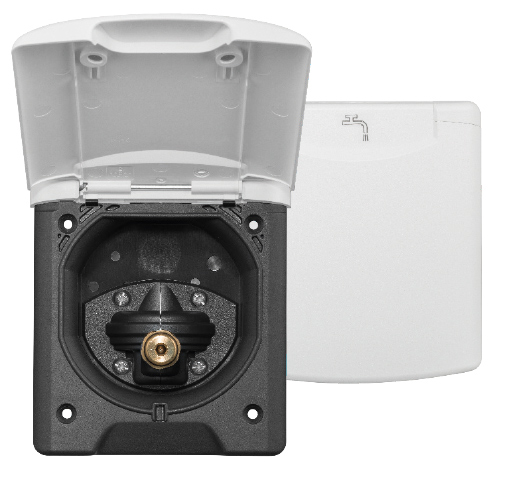

Town water socket inlet

A town water socket inlet allows intake to the vehicle's tank from a public water supply. This enables an uninterrupted supply beyond the capacity of the vehicle's built-in water tank.

SUITABLE FOR
Male coupling for half-inch water couplings.

WITH INTEGRATED PRESSURE REGULATOR
reduces the pressure of the public water supply.

HIGH PERFORMANCE
Inlet pressure up to 10 bar, flow pressure 1.0 bar, idle pressure 1.5 bar. Output 7 l/min.

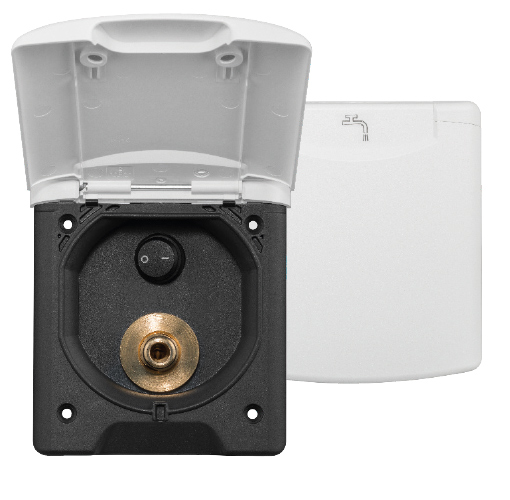

Water socket outlet Basic

Water socket outlet for external water connection. A water socket outlet enables connecting a hose or other water consuming device.


PRODUCT CHARACTERISTICS
With GEKA rainwater connection, IG ½" x AG ¾" Brass dedicated appliance plug, AG G ½" light GEKA-2/3-hose screw fixing 90°, IG G ¾" - 10mm MS rocker switch 0-1, 12V.

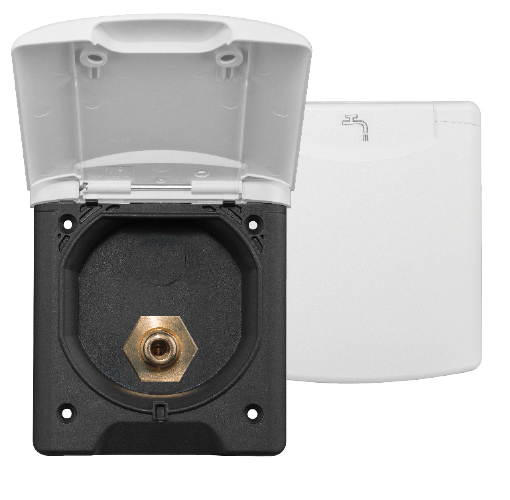

Water socket outlet Advanced

Water socket outlet for external water connection. A water socket outlet enables connecting a hose or other water consuming device.

PRODUCT CHARACTERISTICS
for pressure water connection, push-in brass water coupling with screw connection DN10 3/8'' incl. lock nut, push-in brass nipple, STN 9/10 for connection of an external shower hose, without rocker switch.

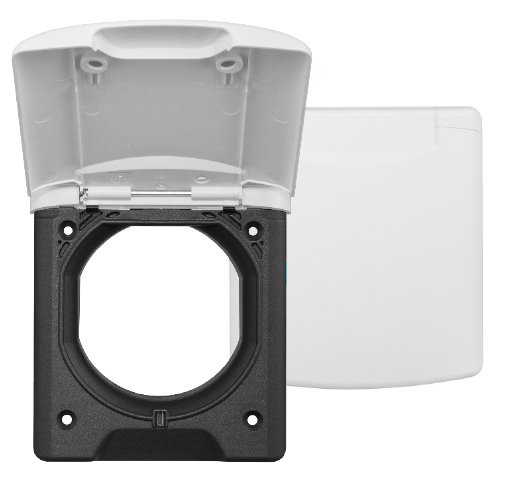

Performance implementation

For feeding through power, water or gas conduits for internal connections.

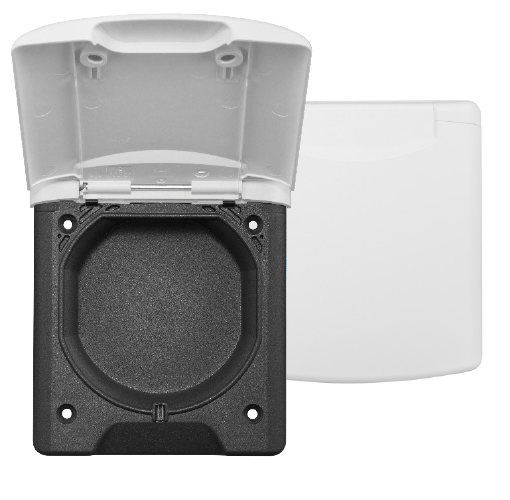

Blank socket flat with closed rear

Blank socket with closed rear wall for the installation of individualised components.

UNIVERSALLY APPLICABLE
Depth: 24.5 mm, easy to replace cover lid.
