Industrial grade
power connectors
CEE standard
for construction sites
Plugs, connectors
and built-in socket outlets
Industrial grade
power connectors
CEE standard
for construction sites
Plugs, connectors
and built-in socket outlets
Industrial plug and socket devices according to the CEE standard enable a safe heavy-current connection. We offer an extensive range of plugs, connectors, sockets, container connectors, and extra-low voltage plug devices.
CEE plug devices are primarily used in industry and on construction sites. With high protection ratings IP67 and IP44, CEE plug devices withstand the highest demands. Features like turn2fix and plug2power make them particularly easy to handle.
Plugs
according to IEC 60309, EN 60309, VDE 0623
TURN2FIX
Plugs, angled plugs, side-mounted appliance inlet plugs and angled side-mounted appliance inlet plugs with turn2fix quick-release fastening system.
Plugs, angled plugs, side-mounted appliance inlet plugs and angled side-mounted appliance inlet plugs with turn2fix quick-release fastening system.
IP67 protection rating
Plugs, dedicated wall appliance inlet plugs and angled side-mounted appliance inlet plugs waterproof according to IP67.
Plugs, dedicated wall appliance inlet plugs and angled side-mounted appliance inlet plugs waterproof according to IP67.
IP44 protection rating
Plugs, angled plugs, wall appliance inlet plugs, side-mounted appliance inlet plugs and angled side-mounted appliance inlet plugs splash protected according to IP44.
Plugs, angled plugs, wall appliance inlet plugs, side-mounted appliance inlet plugs and angled side-mounted appliance inlet plugs splash protected according to IP44.
Produktübersicht

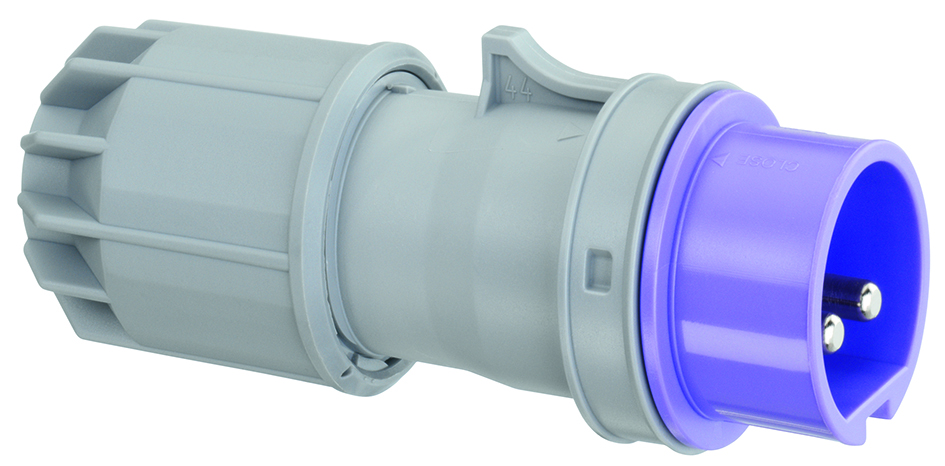

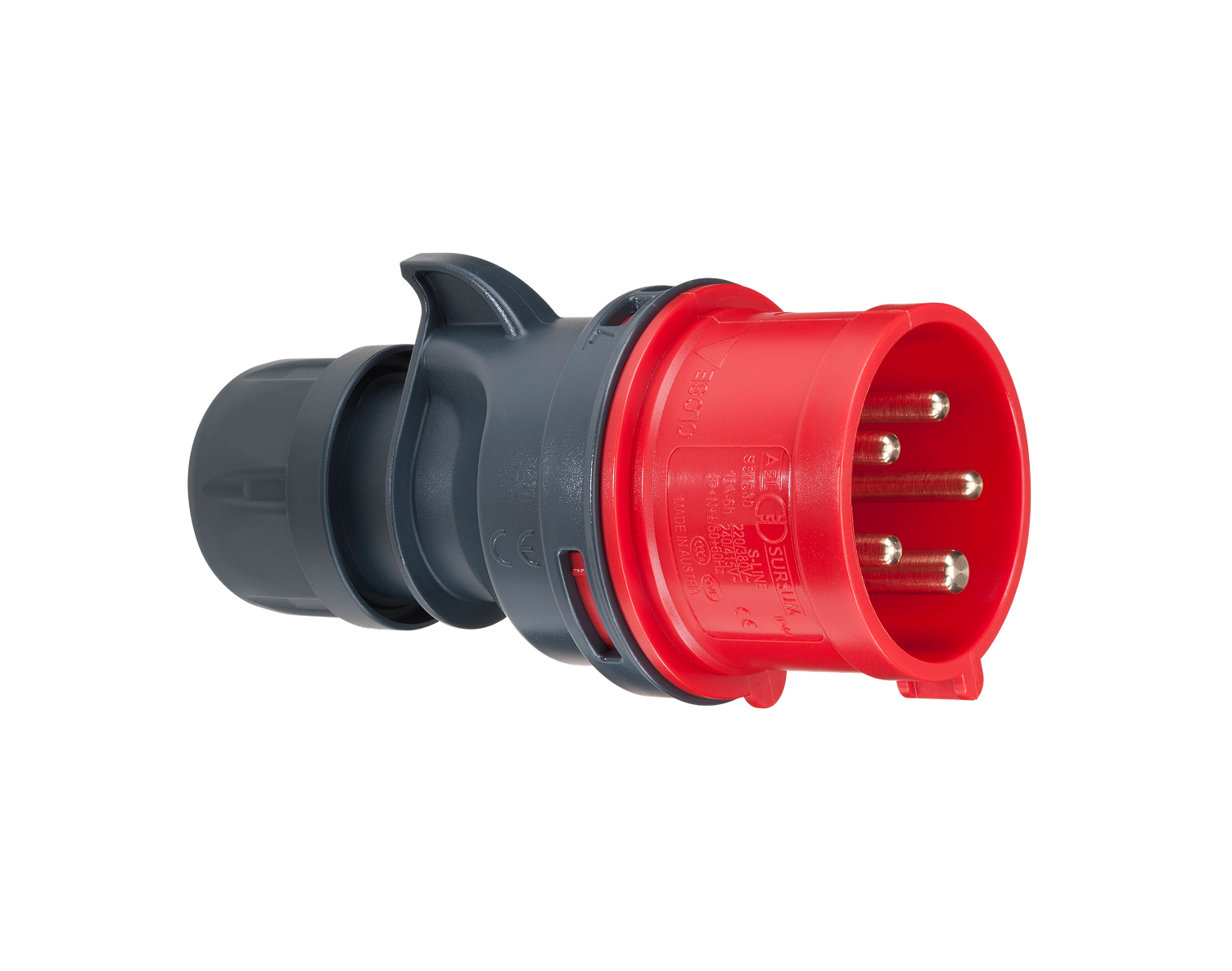

Plug
splash-proof IP44
- brass contacts
- screw terminals
- quick release locking system
(turn2fix)

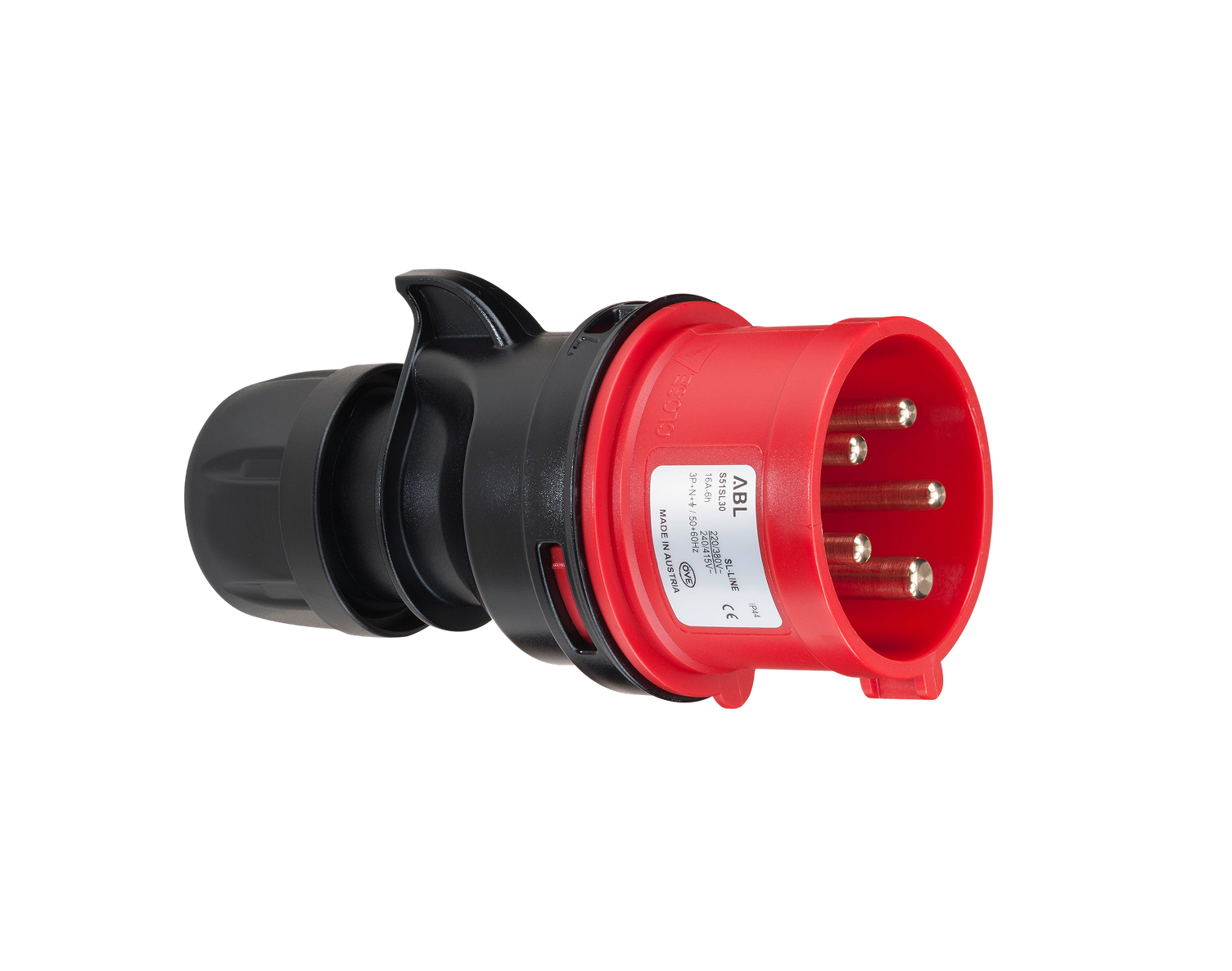

Plug
splash-proof IP44
- screwless connection technology
(plug2power) - quick release locking system
(turn2fix) - nickel-plated contacts

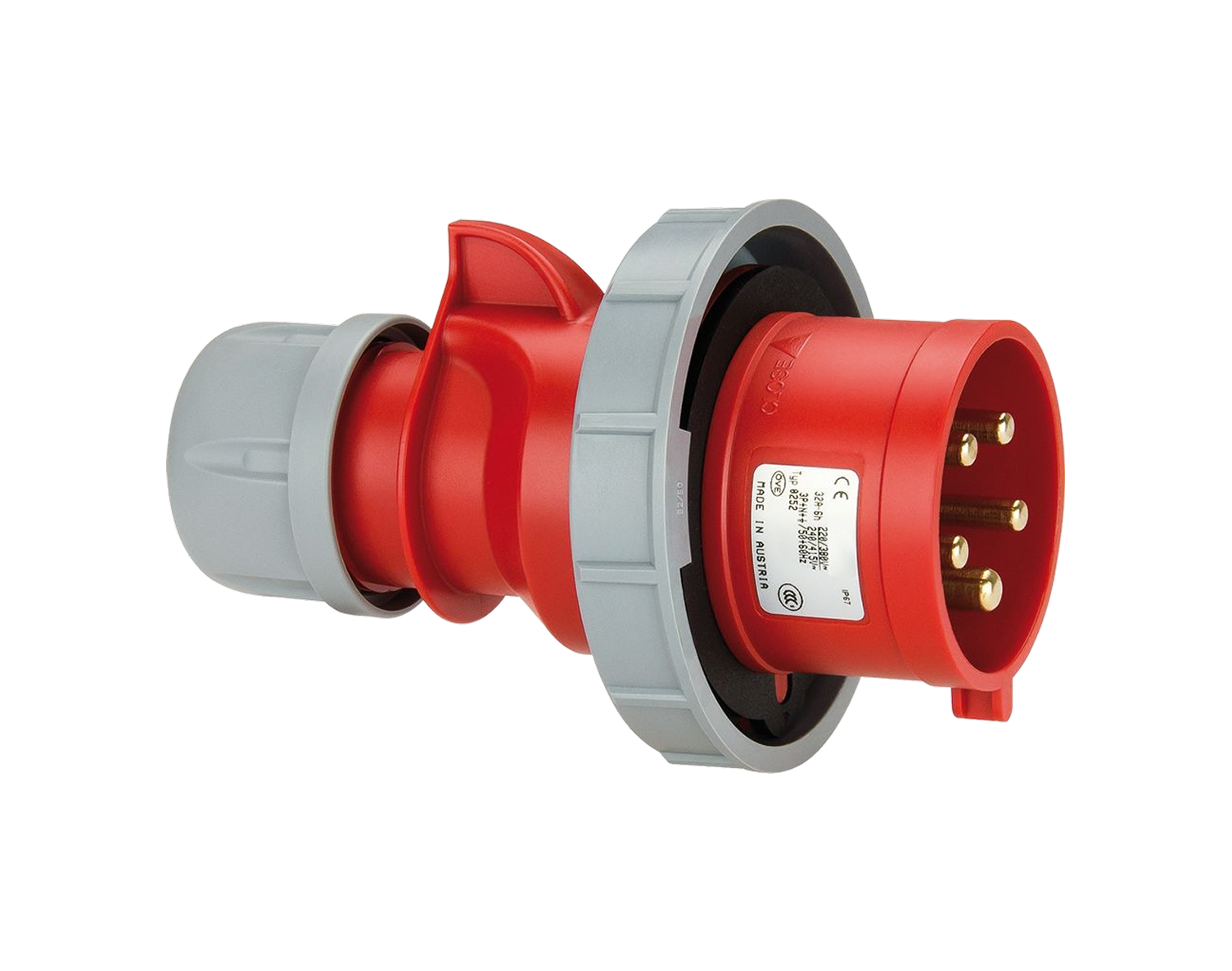

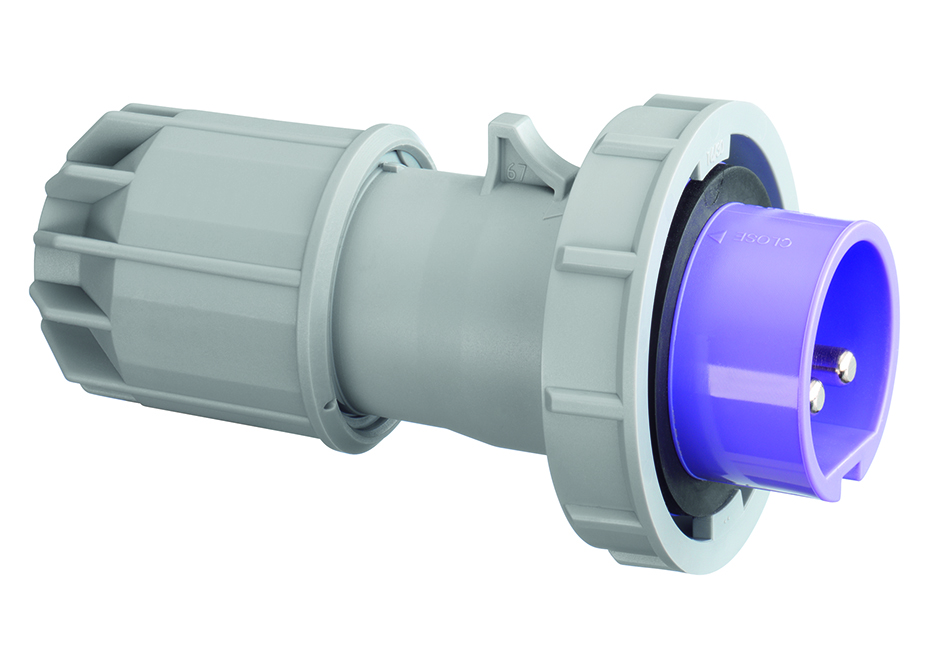

Plug
watertight IP67
- screw terminals
- quick release locking system
(turn2fix) - nickel-plated contacts

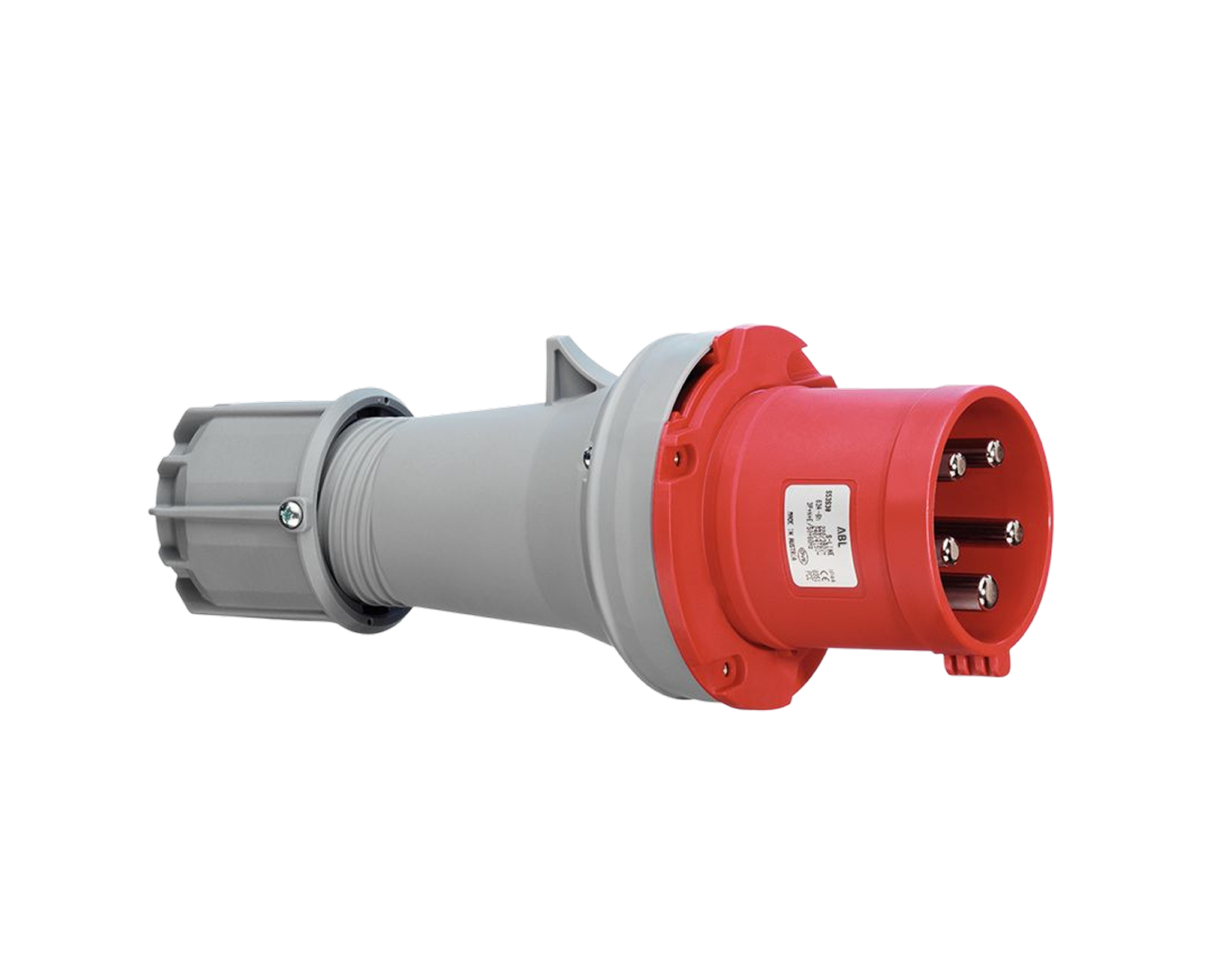

Plug
splash-proof IP44
- HighPower version
- nickel-plated contacts with pilot contact
- screw terminals

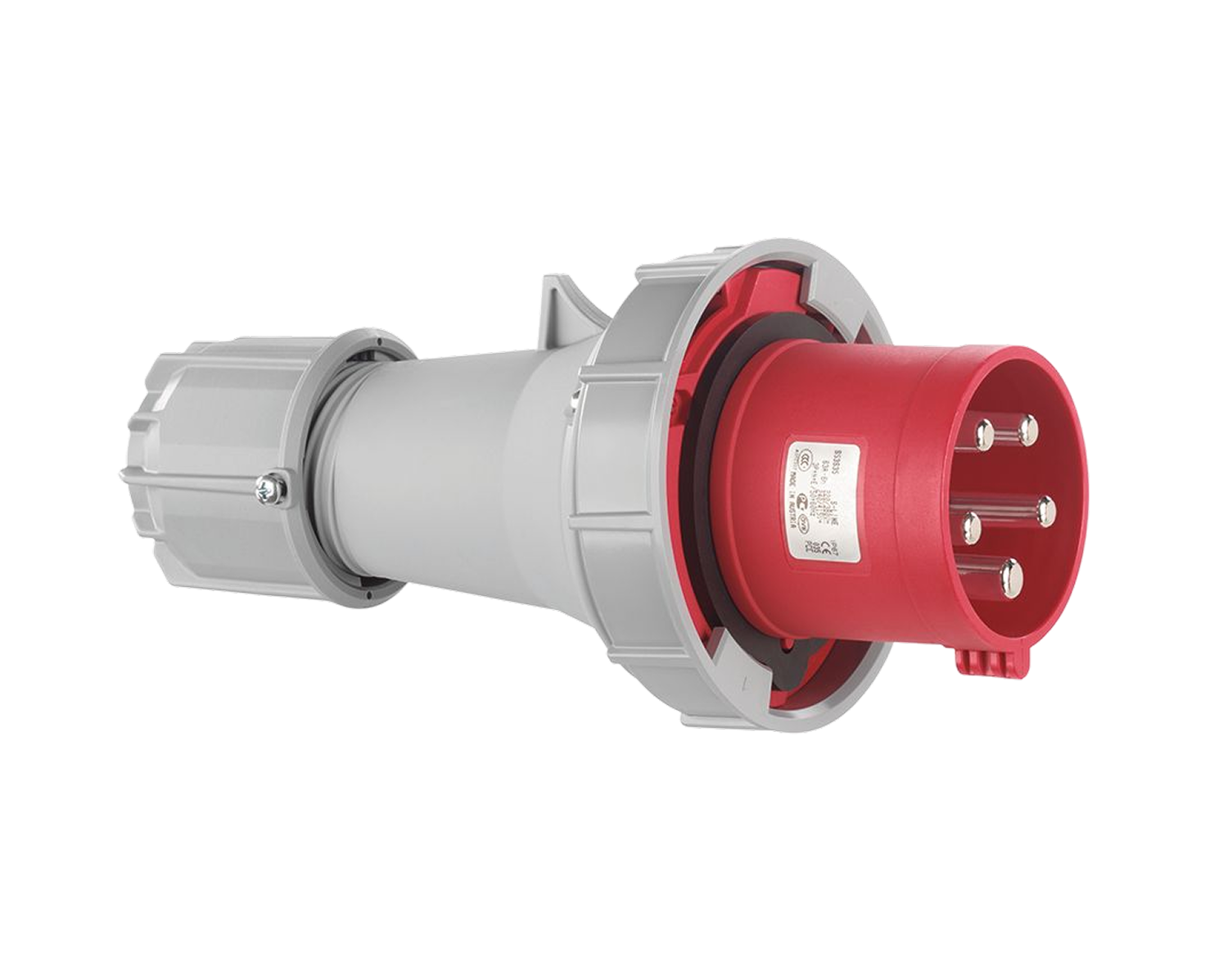

Plug
watertight IP67
- HighPower version
- nickel-plated contacts with pilot contact
- screw terminals

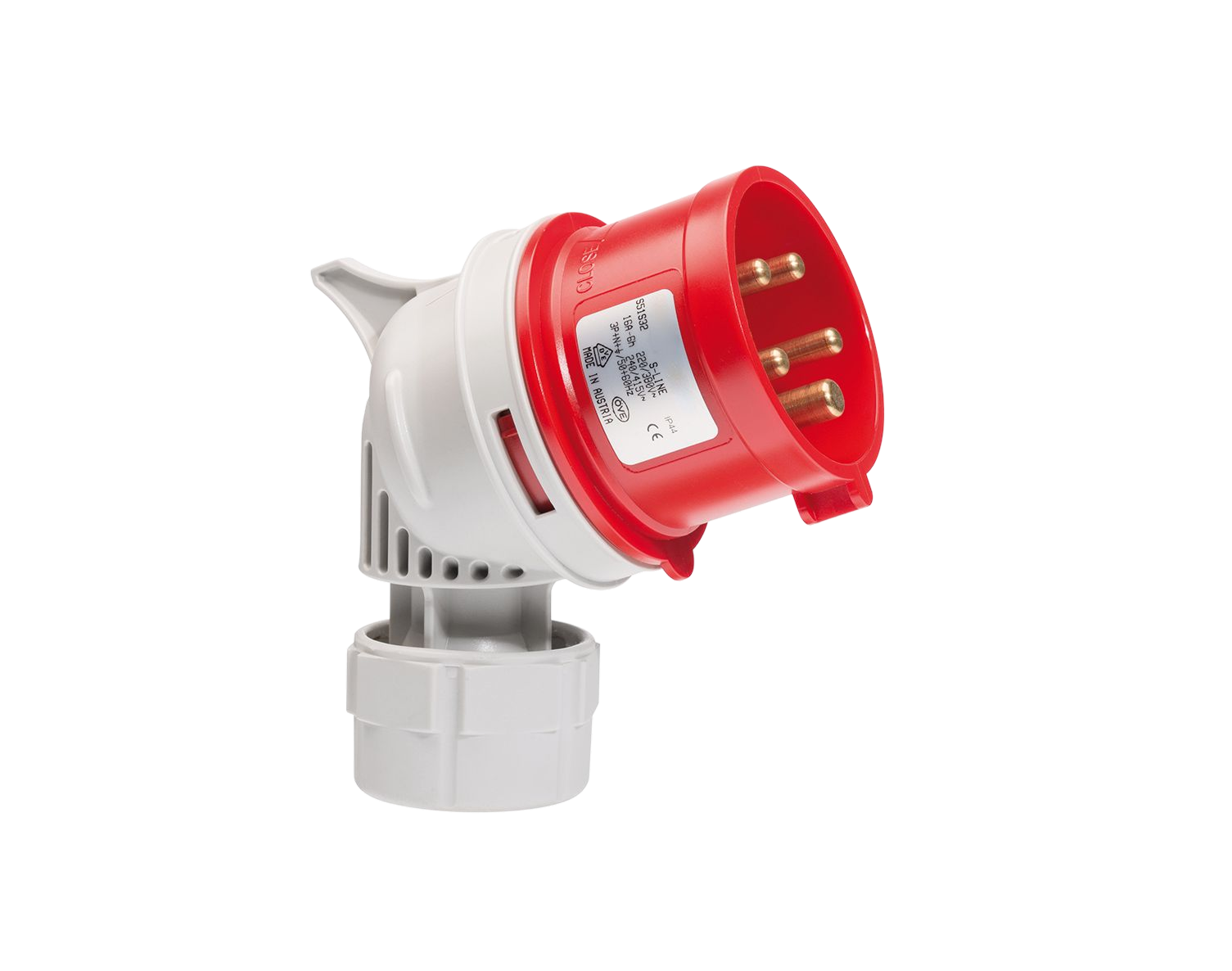

Angle plug
splash-proof IP44
- screw terminals
- quick release locking system
(turn2fix) - brass contacts

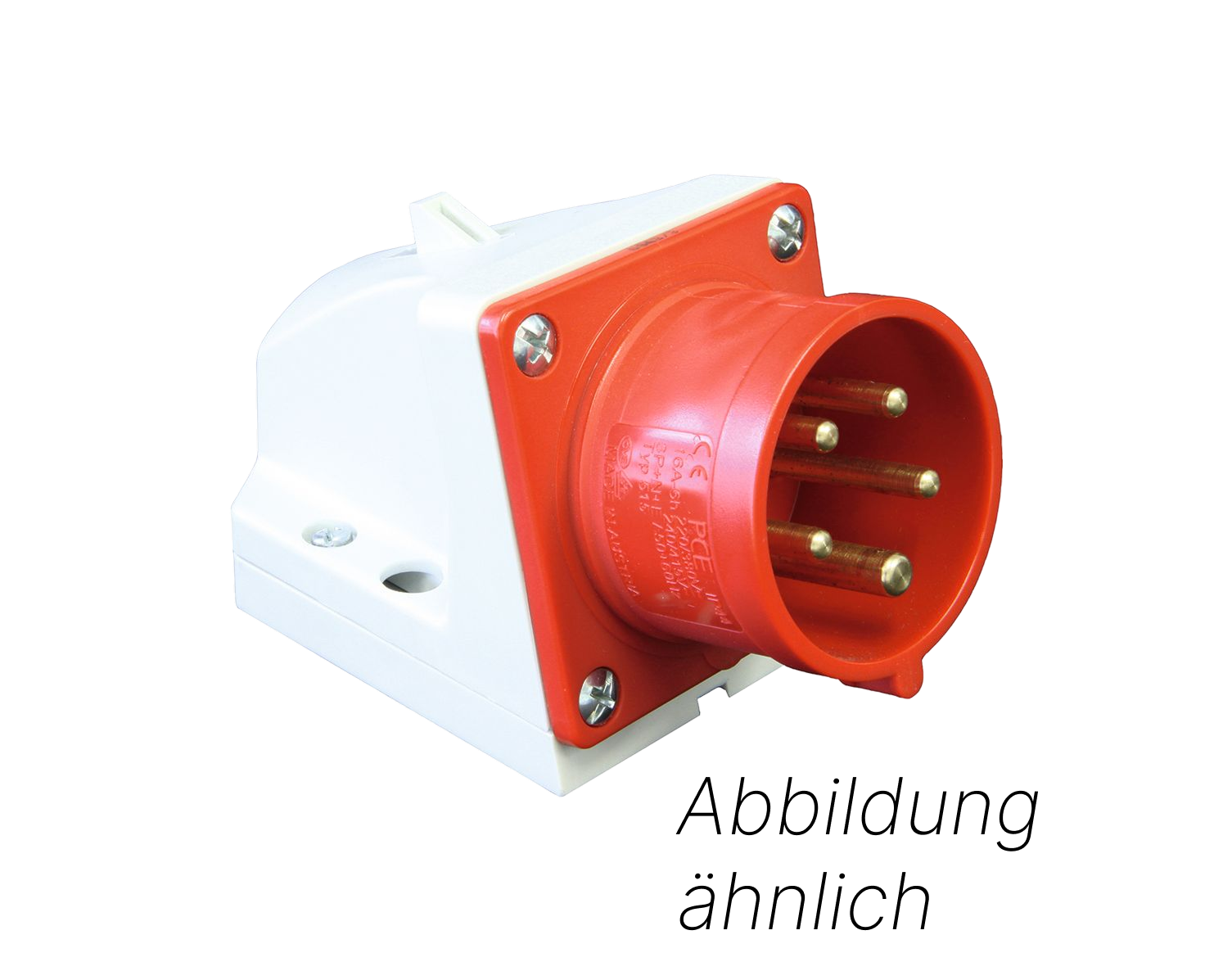

Wall-mounted inlet
splash-proof IP44
- screw terminals
- cable entry above or behind
- including self-sealing grommet
- brass contacts
Wall-mounted inlet
splash-proof IP44
- screw terminals
- can be looped through
- cable entry above, 2x below or behind
- including self-sealing grommet
- brass contacts

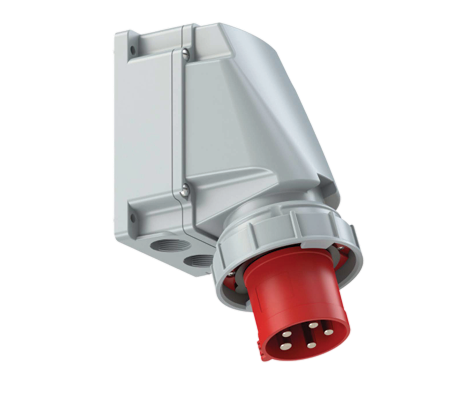

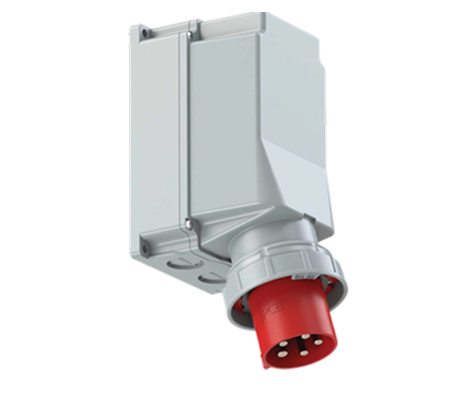

Wall-mounted inlet
watertight IP67
- HighPower version
- nickel-plated contacts with pilot contact
- screw terminals
- cable entry above, below or behind
- housing can be rotated 180°
Wall-mounted inlet
watertight IP67
- HighPower version
- nickel-plated contacts with pilot contact
- screw terminals
- cable entry above, below or behind
- housing can be rotated 180°

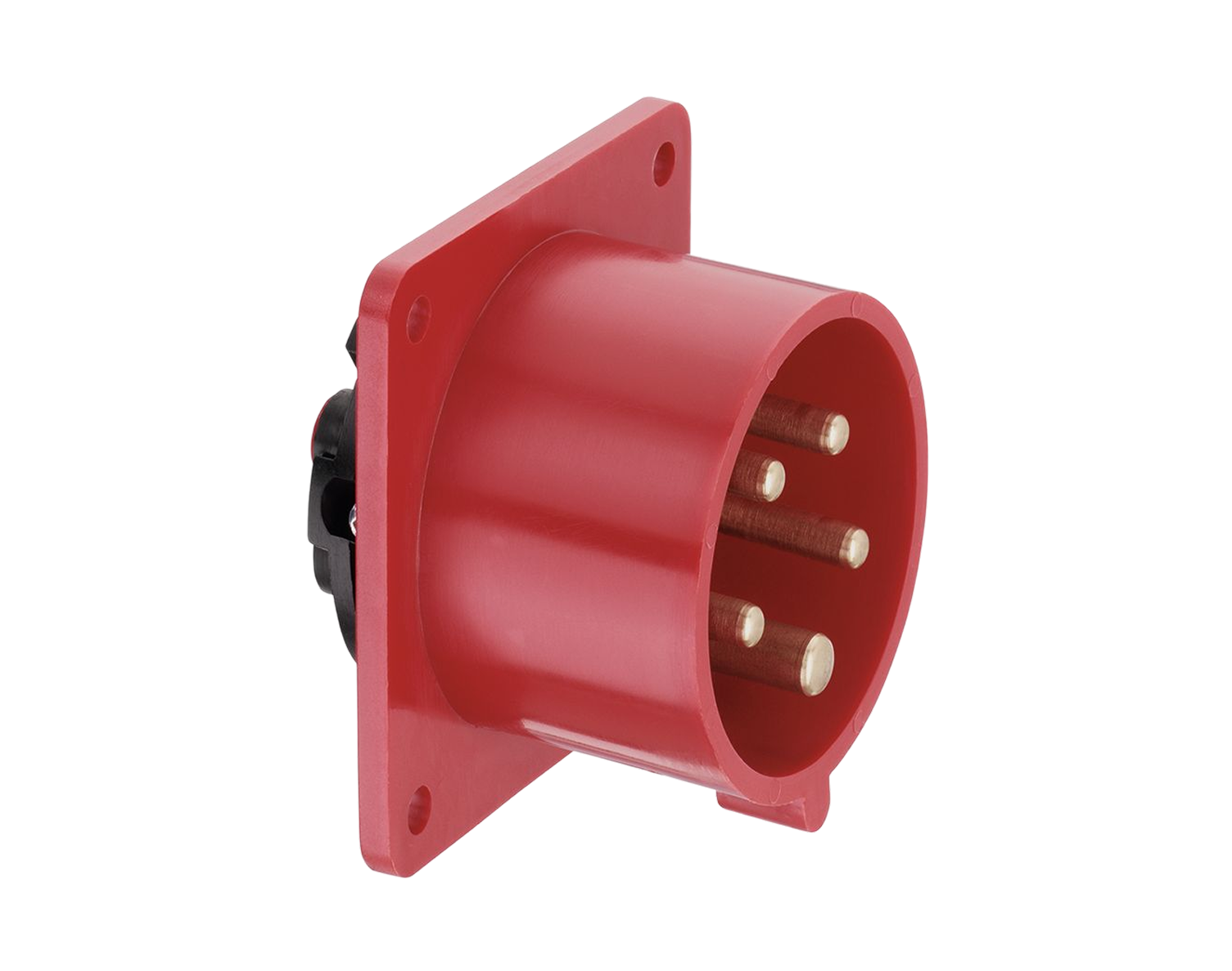

Appliance inlet, straight
splash-proof IP44
- screw terminals
- Notice acc. to EN 60309: for correct use, a retaining lug or retaining slot is necessary.
- brass contacts

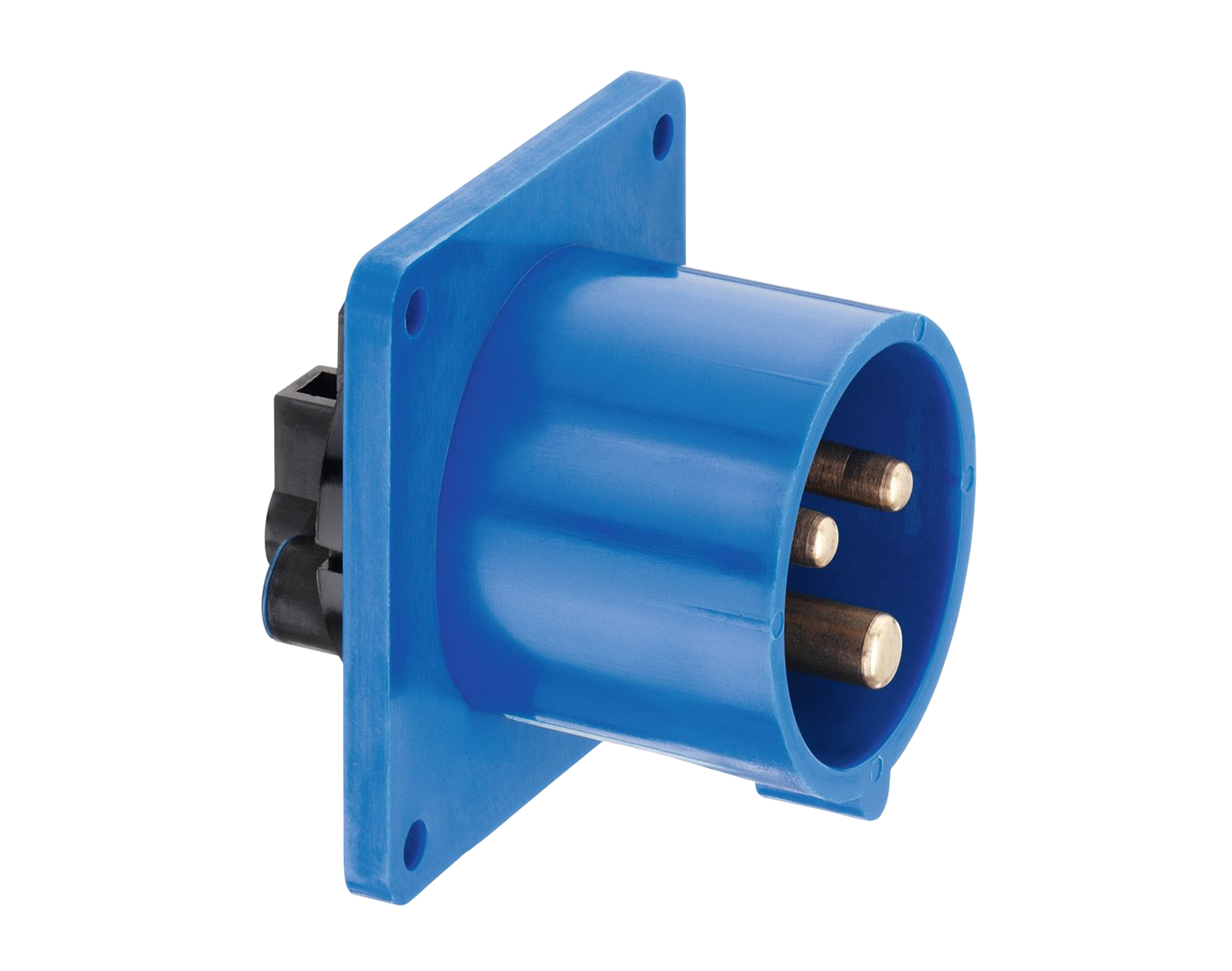

Appliance inlet, straight
splash-proof IP44
- screw terminals
- Notice acc. to EN 60309: for correct use, a retaining lug or retaining slot is necessary.
- brass contacts
- with Flange 60 x 60 mm

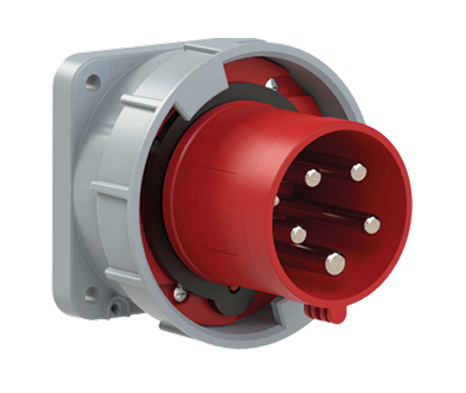

Appliance inlet, straight
watertight IP67
- HighPower version
- nickel-plated contacts with pilot contact
- screw terminals

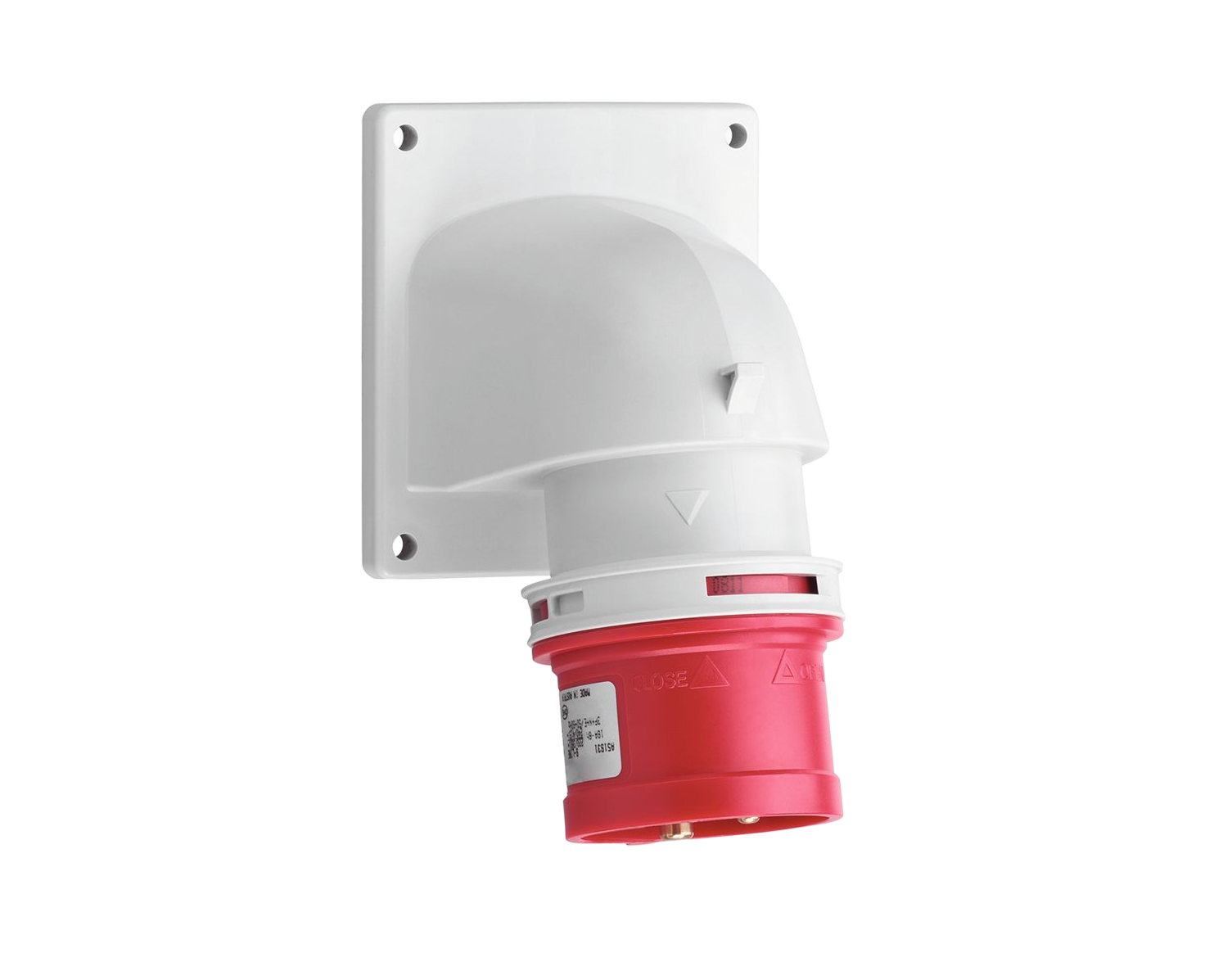

Angle appliance inlet
splash-proof IP44
- screw terminals
- quick release locking system(turn2fix)
- brass contacts

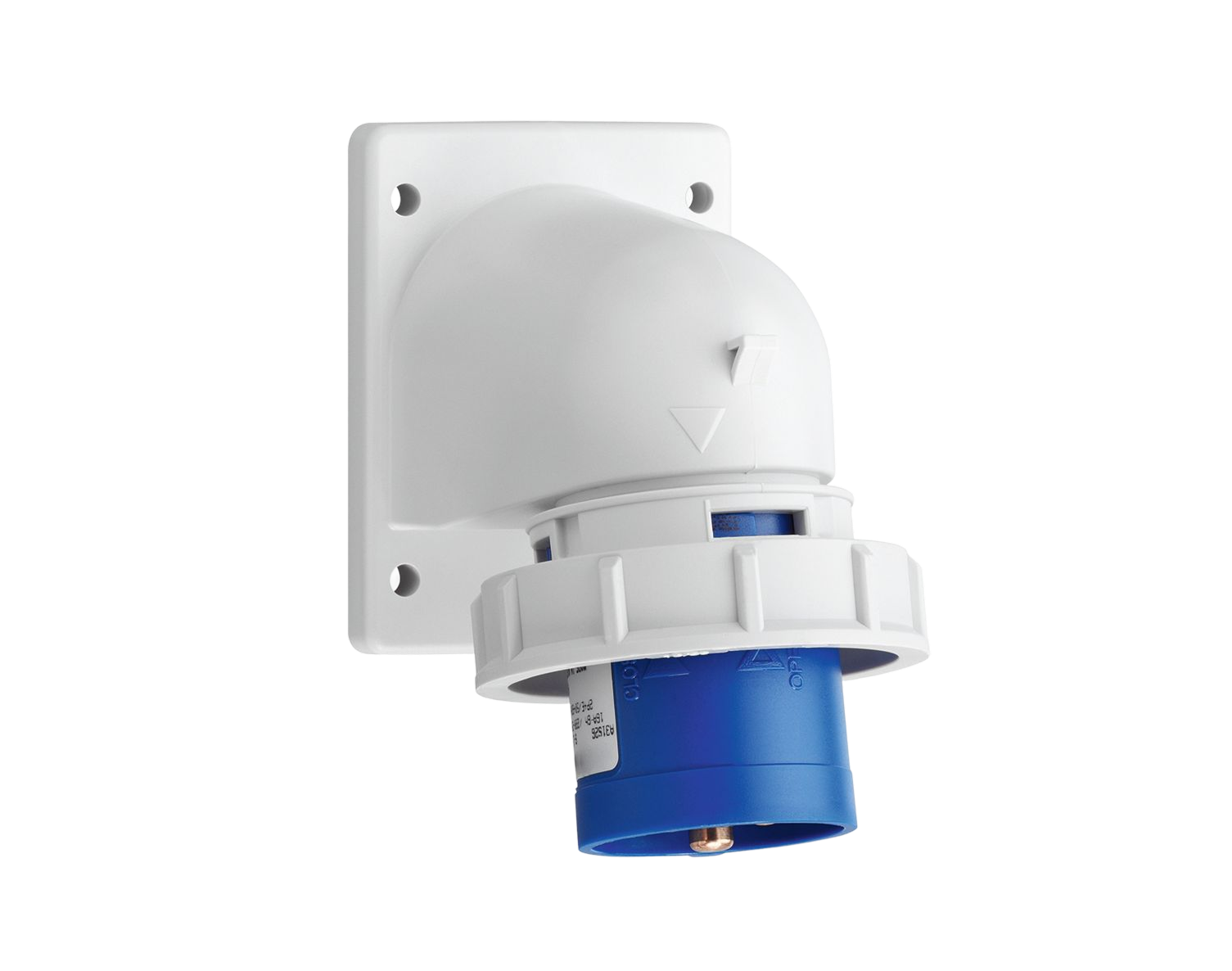

Angle appliance inlet
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- brass contacts

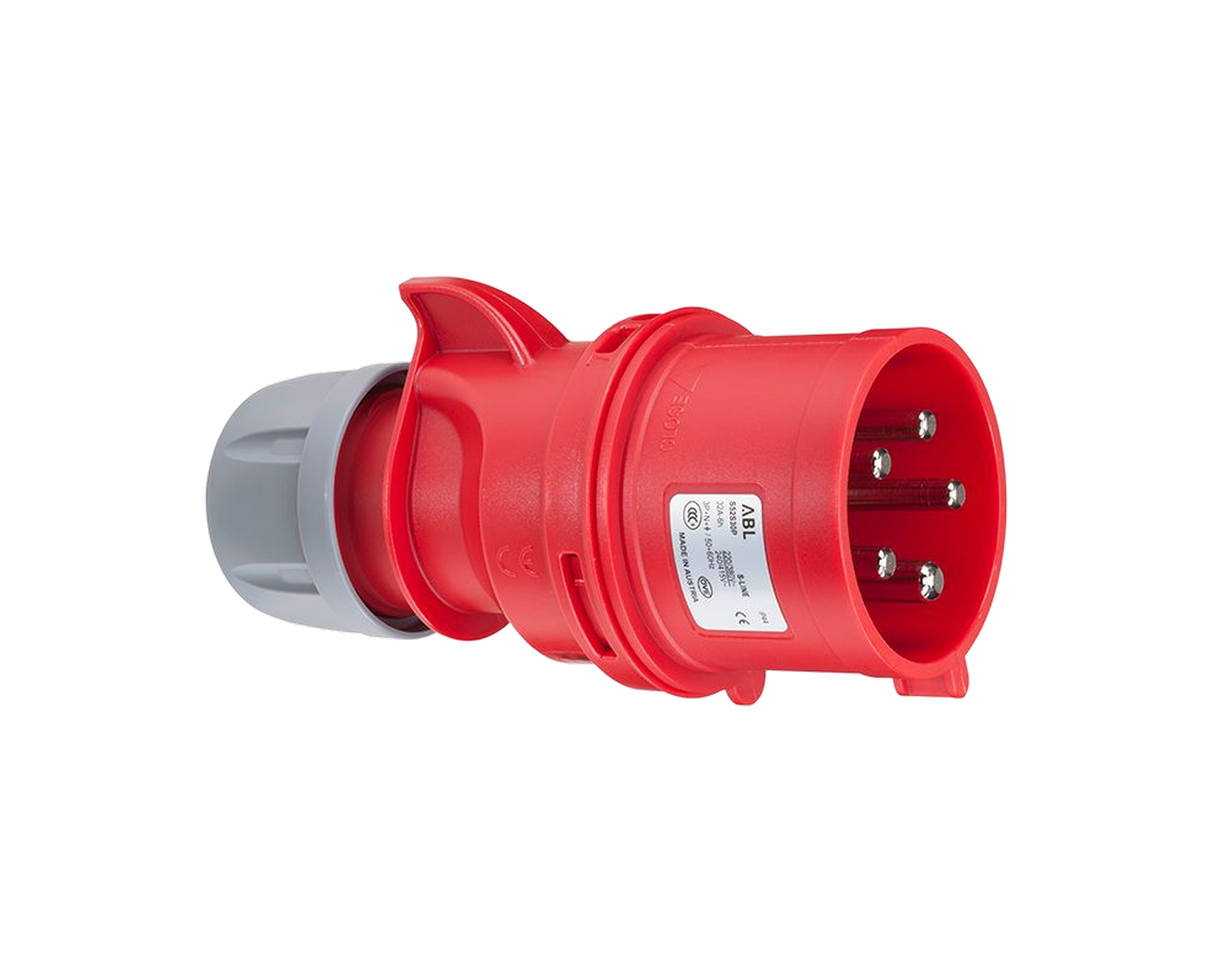

Phase inverter
splash-proof IP44
- screw terminals
- quick release locking system (turn2fix)
- brass contacts

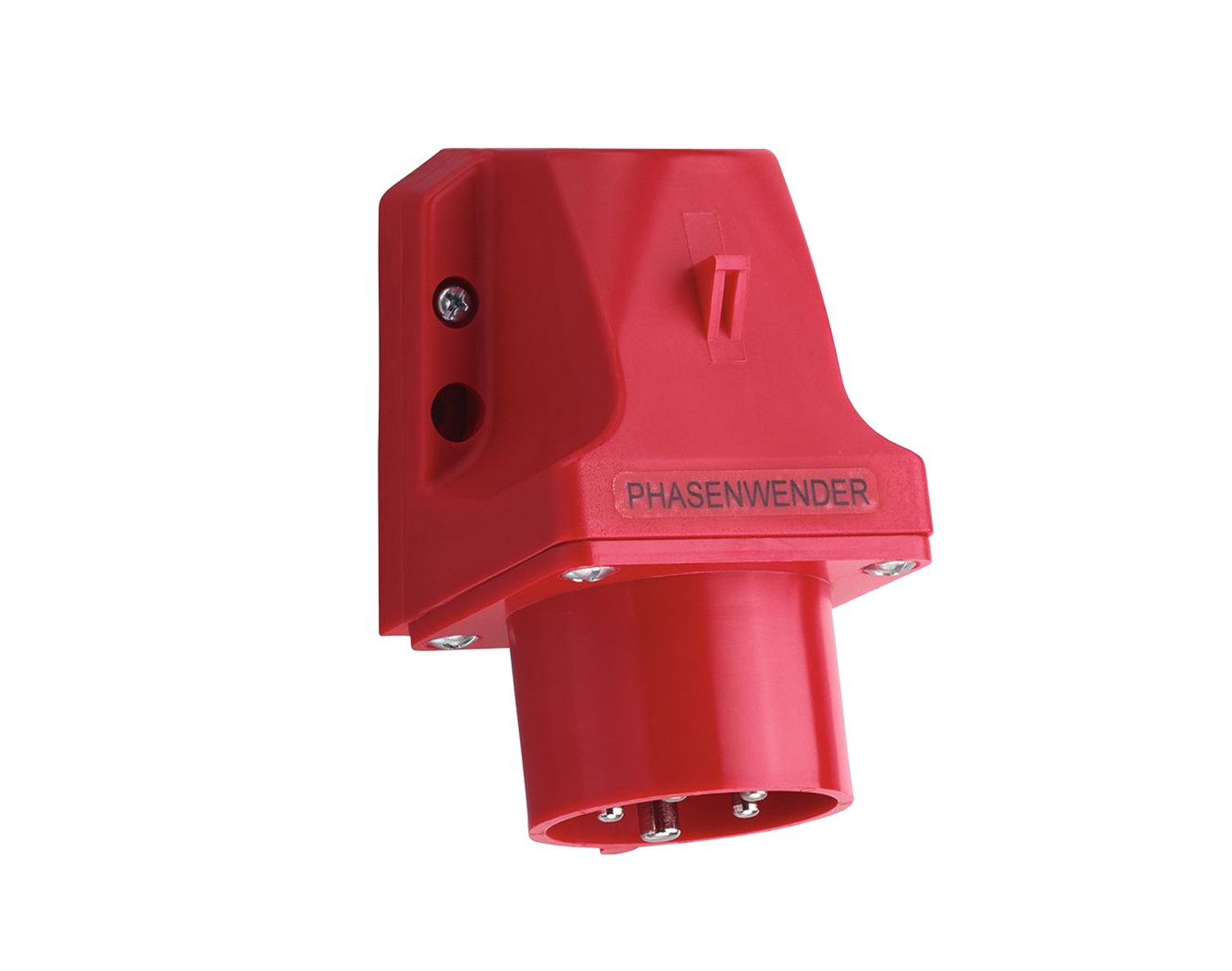

Phase inverter - wall-mounted inlet
splash-proof IP44
- screw terminals
- cable entry from above or behind
- brass contacts

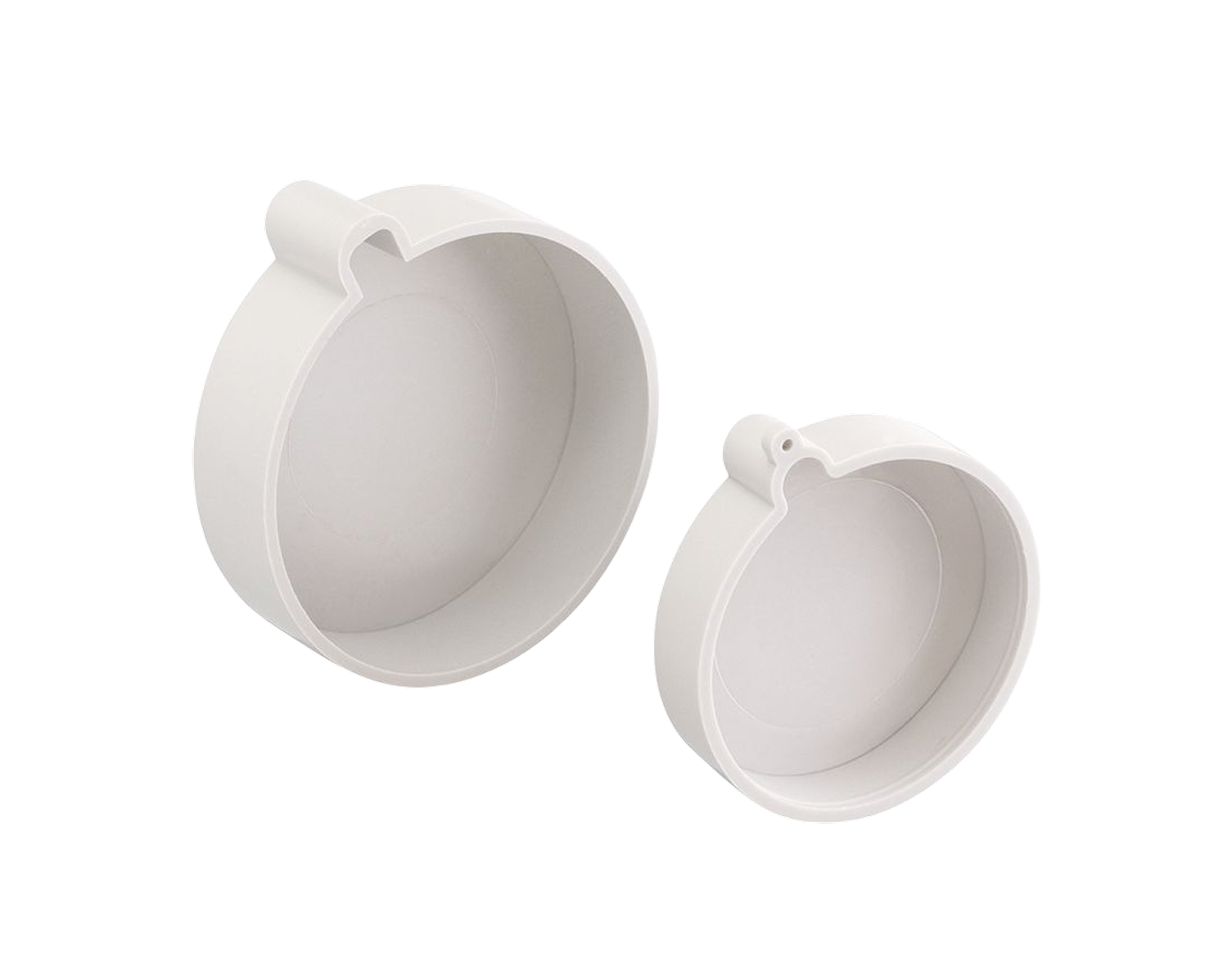

Water protection cap
63 and 125 A
- watertight IP67
- for all 63 and 125 A plugs and
appliance inlets

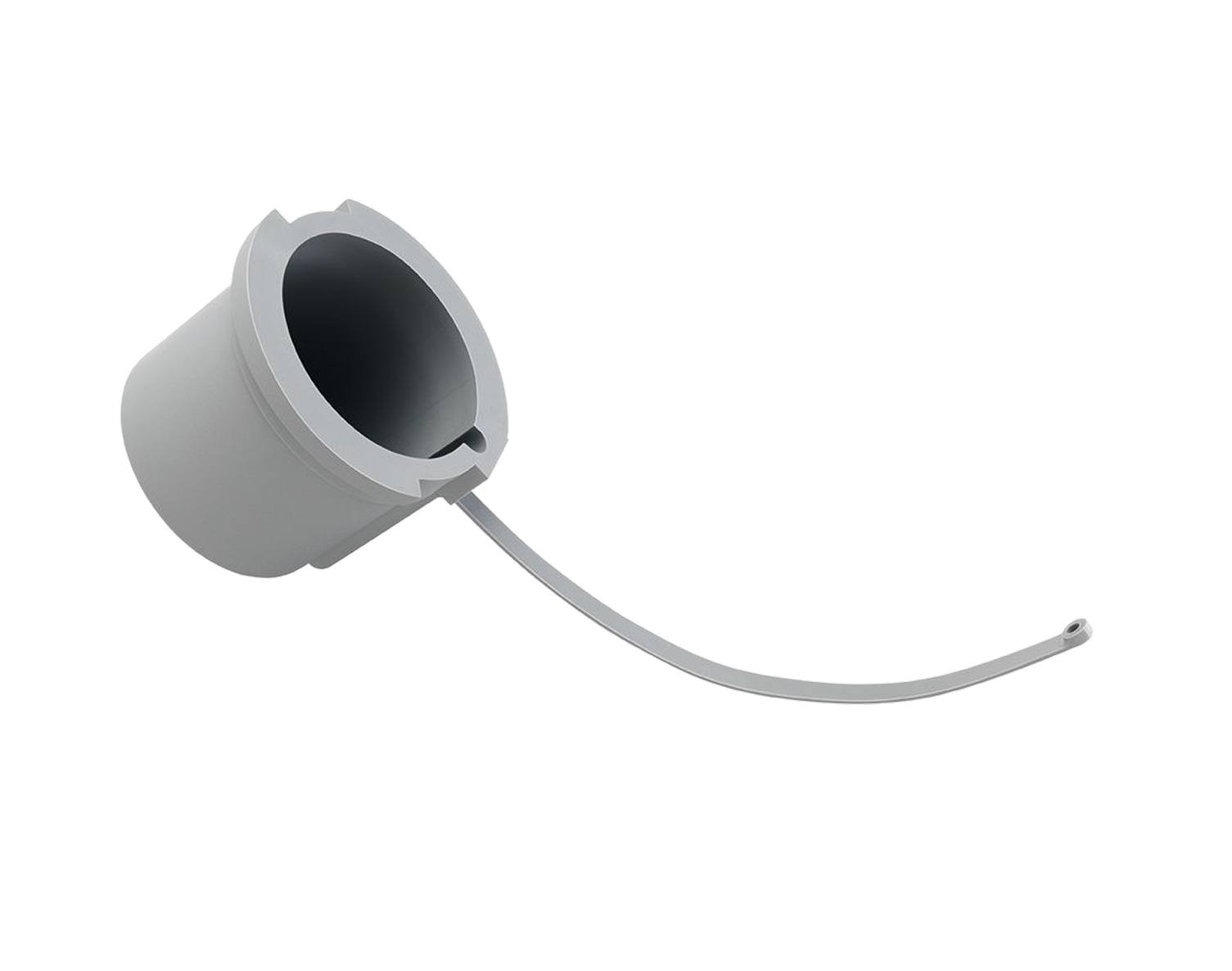

Dust cap
16 and 32 A
- for all plugs and appliance inlets
- protects contacts from contamination
Dust cap
63 and 125 A
- for all plugs and appliance inlets
- protects contacts from contamination
Connectors
according to IEC 60309, EN 60309, VDE 0623
Turn2Fix
Connectors with turn2fix quick-release fastening system.
Connectors with turn2fix quick-release fastening system.
Plug2Power
Connectors with screwless plug2power connection technology.
Connectors with screwless plug2power connection technology.
IP67 protection rating
Connectors waterproof according to IP67.
Connectors waterproof according to IP67.
IP44 protection rating
Connectors splash protected according to IP44.
Connectors splash protected according to IP44.
Produktübersicht

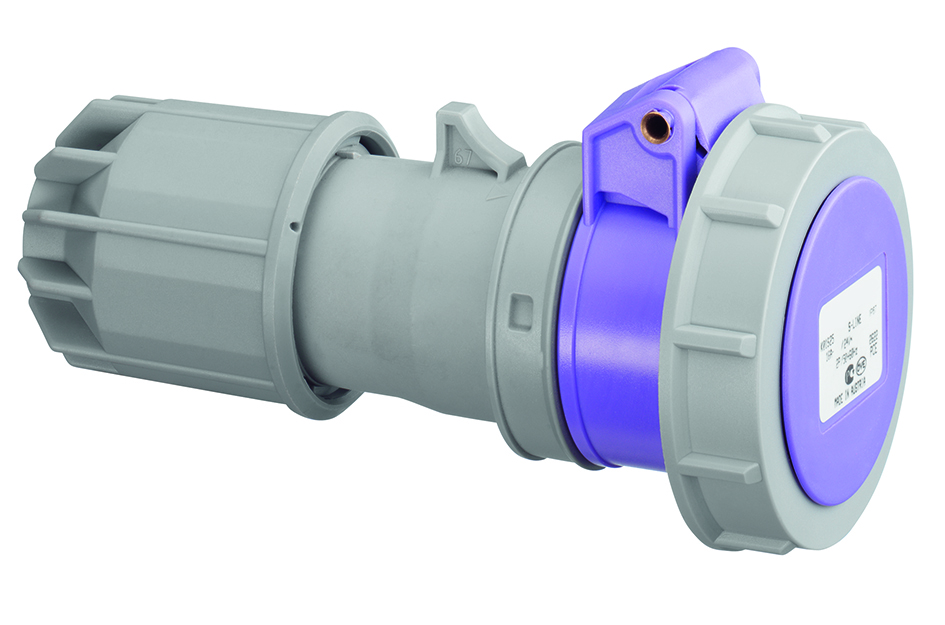

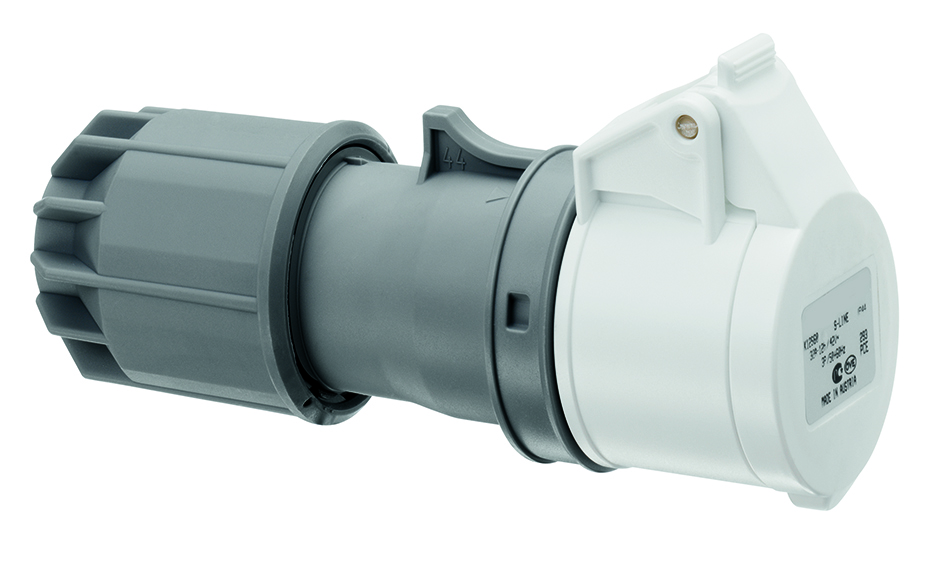

Connector
splash-proof IP44
- hinged lid with thumb grip
- screw terminals
- quick release locking system (turn2fix)
- brass contacts
Connector
splash-proof IP44
- hinged lid with thumb grip
- screwless connection technology (plug2power)
- quick release locking system (turn2fix)
- nickel-plated contacts
Connector
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- nickel-plated contacts
Connector
watertight IP67
- HighPower version
- contacts: brass with lamellar contact CuBe
- with pilot contact
- screw terminals
Connector
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- contacts: brass with lamellar contact CuBe
Socket outlets
Panel-, wall- and combi-wall-mounted socket outlets according to IEC 60309, EN 60309, VDE 0623
Plug2Power
Wall and flanged socket outlets with screwless plug2power connection technology.
Wall and flanged socket outlets with screwless plug2power connection technology.
IP67 protection rating
Wall and flanged socket outlets waterproof according to IP67.
Wall and flanged socket outlets waterproof according to IP67.
IP54 protection rating
Flanged socket outlets splash protected according to IP54.
Flanged socket outlets splash protected according to IP54.
IP44 protection rating
Wall and combination wall socket outlets splash protected according to IP44.
Wall and combination wall socket outlets splash protected according to IP44.
Produktübersicht

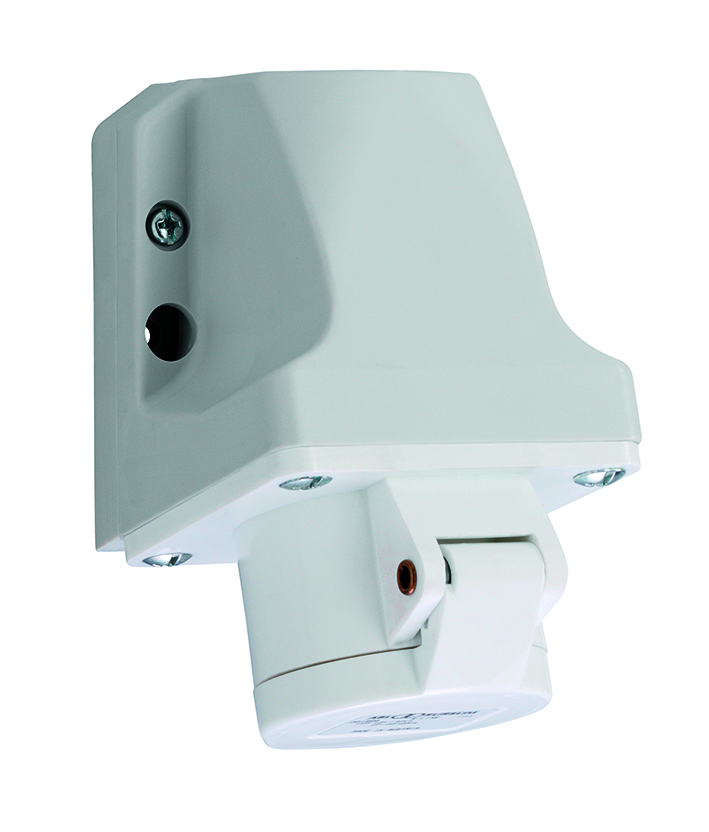

Wall-mounted socket outlet
splash-proof IP44
- screwless connection
- cable entry from above or behind
- including self-sealing grommet
- nickel-plated contacts
Wall-mounted socket outlet
splash-proof IP44
- screw terminals
- cable entry from above or behind
- including self-sealing grommet
- brass contacts
Wall-mounted socket outlet
splash-proof IP44
- screw terminals
- can be looped through
- cable entry from above or 2x behind
- including self-sealing grommet
- brass contacts
Wall-mounted socket outlet
watertight IP67
- screw terminals
- cable entry from above or behind
- blank cable gland
- nickel-plated contacts
Wall-mounted socket outlet
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- cable entry above, below or behind
- housing can be rotated 180°
- contacts: brass with lamellar contact CuBe
- blank cable gland
Wall-mounted socket outlet
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- cable entry above, below or behind
- housing can be rotated 180°
- contacts: brass with lamellar contact CuBe
- blank cable gland
Wall-mounted socket outlet
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- cable entry above, below or behind
- housing can be rotated 180°
- contacts: brass with lamellar contact CuBe
- blank cable gland
Combi-wall-mounted socket outlet
splash-proof IP44
- wall box with integrated SCHUKO socket outlet
- connecting terminals up to 10 mm²
- pre-wired
- cable entry above, 2x below or behind
- for 32 A: SCHUKO socket outlet fused, fuse (10 A delayed-tripping)
- including self-sealing grommet
- brass contacts
Combi-wall-mounted socket outlet
splash-proof IP44
- wall box with integrated protective contact
- socket outlet with earth pin (CEE 7/V)
- connecting terminals up to 10 mm²
- pre-wired
- cable entry above, 2x below or behind
- for 32 A: protective contact socket outlet fused, fuse (10 A delayed-tripping)
- including self-sealing grommet
- brass contacts

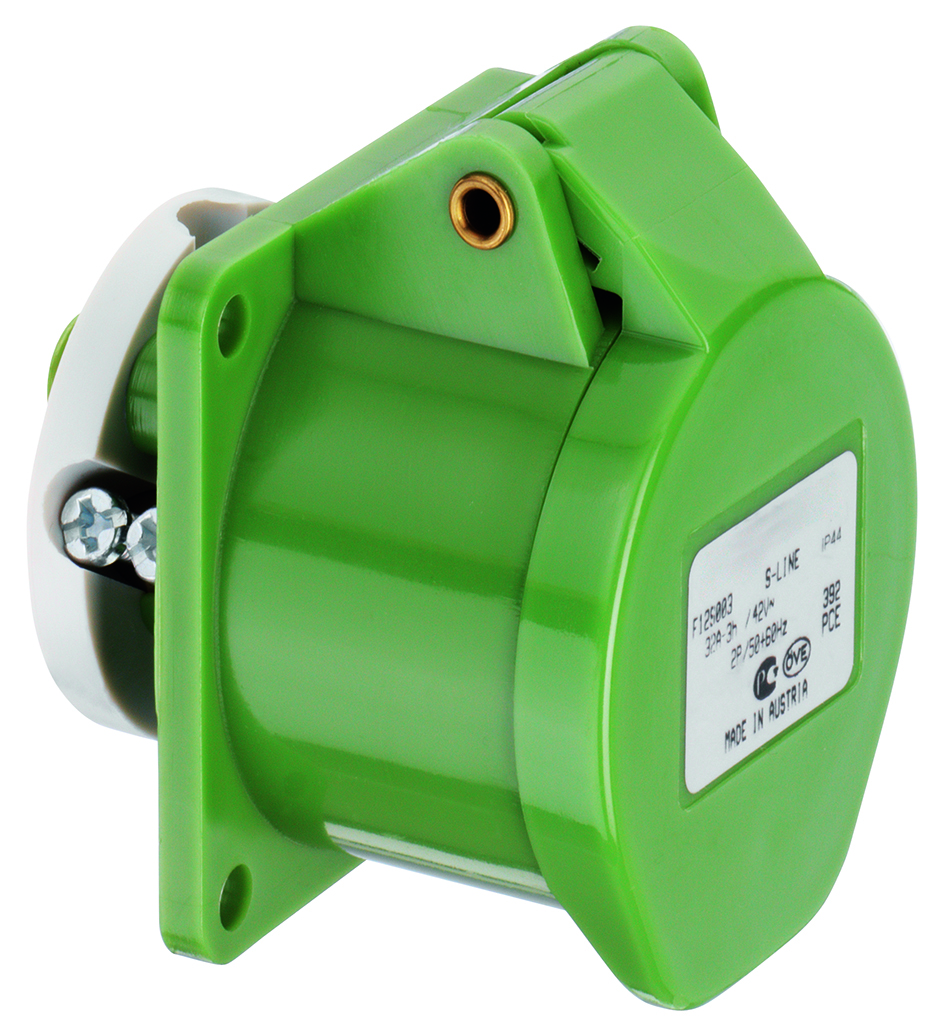

Panel-mounted socket outlet, straight
splash-proof IP54
- screw terminals
- suitable for cable ducts
- brass contacts
Panel-mounted socket outlet, straight
splash-proof IP54
- screwless connection technology (plug2power)
- suitable for cable ducts
- nickel-plated contacts
Panel-mounted socket outlet, straight
watertight IP67
- screw terminals
- nickel-plated contacts
Panel-mounted socket outlet, straight
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- contacts: brass with lamellar contact CuBe
- splash-proof IP44 upon request
Panel-mounted socket outlet, straight
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- contacts: brass with lamellar contact CuBe
Panel-mounted socket outlet angled 20°
splash-proof IP54
- screwless terminals (plug2power)
- nickel-plated contacts
Panel-mounted socket outlet angled 20°
watertight IP67
- screw terminals
- in three parts
- nickel-plated contacts
Panel-mounted socket outlet angled 20°
watertight IP67
- screw terminals
- nickel-plated contacts
Panel-mounted socket outlet angled 15°
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- contacts: brass with lamellar contact CuBe
- with flange 107 x 100 mm
Panel-mounted socket outlet angled 15°
watertight IP67
- HighPower version
- with pilot contact
- screw terminals
- contacts: brass with lamellar contact CuBewith
- flange 114 x 114 mm
Container plugs & socket outlets
e.g. for use in ports, airport terminals, shipping and haulage.
Turn2Fix
Portable site office plugs, connectors, wall and flanged socket outlets with turn2fix quick-release fastening system.
Portable site office plugs, connectors, wall and flanged socket outlets with turn2fix quick-release fastening system.
IP67 protection rating
Portable site office plugs, connectors, wall and flanged socket outlets with turn2fix quick-release fastening system.
Portable site office plugs, connectors, wall and flanged socket outlets with turn2fix quick-release fastening system.
Nickel-plated contacts
to ensure a long product life
to ensure a long product life
Produktübersicht
Container Plug
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- 32A 4p 3h 440V
- nickel-plated contacts
Container Connector
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- 32A 4p 3h 440V
- nickel-plated contacts
Container Wall-mounted socket outlet
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- 32A 4p 3h 440V
- nickel-plated contacts
Container Panel-mounted socket outlet straigt
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- 32A 4p 3h 440V
- nickel-plated contacts
Container Panel-mounted socket outlet angled
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- 32A 4p 3h 440V
- nickel-plated contacts
Eventline
according to IEC 60309, EN 60309, VDE 0623. For event management applications.
Turn2Fix
Plugs and connectors with turn2fix quick-release fastening system.
Plugs and connectors with turn2fix quick-release fastening system.
IP44 protection rating
Plugs, connectors and flanged socket outlets splash protected according to IP44.
Plugs, connectors and flanged socket outlets splash protected according to IP44.
User-friendliness
EventLine connectors with hinged lid and thumb grip.
EventLine connectors with hinged lid and thumb grip.
Produktübersicht
Plug, black
splash-proof IP44
- screw terminals
- quick-release locking system (turn2fix)
- brass contacts
Connector, black
splash-proof IP44
- hinged lid with thumb grip
- screw terminals
- quick release locking system (turn2fix)
- brass contact
Panel-mounted socket outlet straight, black
splash-proof IP44
- screw terminals
- brass contacts
Panel-mounted socket outlet angled 20°, black
splash-proof IP44
- screw terminals
- brass contacts
Low-voltage plugs & socket outlets
according to IEC 60309, EN 60309, VDE 0623
Turn2Fix
Plugs and connectors with turn2fix quick-release fastening system.
Plugs and connectors with turn2fix quick-release fastening system.
IP67 protection rating
Flanged socket outlets, plugs and connectors waterproof according to IP67.
Flanged socket outlets, plugs and connectors waterproof according to IP67.
IP44 protection rating
Wall and flanged socket outlets, plugs and connectors splash protected according to IP44.
Wall and flanged socket outlets, plugs and connectors splash protected according to IP44.
Nickel-plated contacts
to ensure a long product life.
to ensure a long product life.
Produktübersicht
Plug
splash-proof IP44
- screw terminals
- quick release locking system (turn2fix)
- nickel-plated contacts
Plug
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- nickel-plated contacts
Connector
splash-proof IP44
- screw terminals
- quick release locking system (turn2fix)
- nickel-plated contacts
Connector
watertight IP67
- screw terminals
- quick release locking system (turn2fix)
- nickel-plated contacts
Wall-mounted socket outlet
splash-proof IP44
- nickel-plated contacts
- cable entry above or behind
Panel-mounted socket outlet straight
watertight IP67
- screw terminals
- nickel-plated contacts
